9mm Rotary Potentiometer 27

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number


Value in Ohms


Select Part Numbers from the table then click on the Request a Quote Button to send your requirements for Price and Delivery. If you need custom product please use the Send your Specs Button

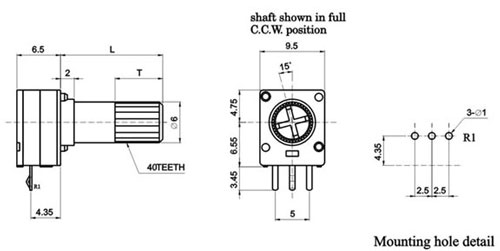

L = 8.0mm
T = 6.0mm


Electrical Characterisics

Mechanical Characteristics

Resistance Values

10 KOhm ~ 500 kOhm +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

10 ~ 80 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

4 kgf/cm

Rated Power


Push / Pull Strength

5 kgf/cm

Operating Voltage

taper A, C = 25V AC max
taper B = 50V AC max


10,000 cycles

Slide Noise

100mV max

Insulation Resistance

100MOhm min @250V DC

Gang Error

3dB max
