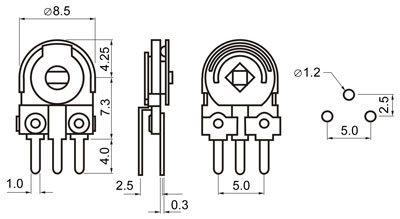

8mm Semi-Fixed Pot 5

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Taper

Value in Ohms

Knob

3FP/R083-3

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Total Resistance

200 Ohm ~ 1MOhm +/- 30%

Total Rotational Angle

260 deg +/- 10 deg

Resistance Taper

B

Rotation Torque

50 ~ 350 gf/cm

Power Rating

0.1W

Rotation Stop Strength

500 gf/cm

Operating Voltage

100V

Material

Carbon

Residual Resistance

3% max

Life

100 cycles

Knob option

A

B

C

D

E

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.
