11mm Encoder 5

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request a Quote

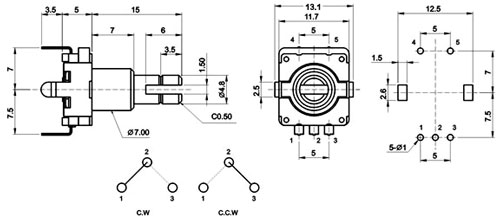

Part Number

3EN/11R

5E

QD

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Rating

10mA @ 5V DC

Total Rotational Angle

85 deg +/- 5 deg

Withstanding Voltage

300V AC for 1 minute

Push / pull Strength

8 kgf

Insulation Resistance

100MOhm min @300V DC

Rotational Stop Strength

4 kgf/cm

Rotational Torque

80 ~ 200 gf/cm

Life

15,000 cycles
