16mm Pot + Sw 18

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request a Quote

Part Number

3RP/16P3S

D1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 1 MOhm  +/- 20%

Total Rotational Angle

270 deg +/- 5 deg

Resistance Taper

A, B

Rotational Torque

10 ~ 100 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

7 kgf/cm

Rated Power

0.2W

Push / Pull Strength

8 kgf/cm

Operating Voltage

250V AC, 10A

Switch Function

Push

Withstanding Voltage

500V DC for 1 minute

LIfe

15,000 cycles

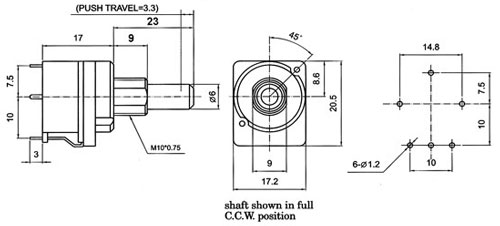

Type Of Shaft

CODE

3

LENGTH

23.0

DIM “ML”

8.0
