9mm Rotary Potentiometer 13

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

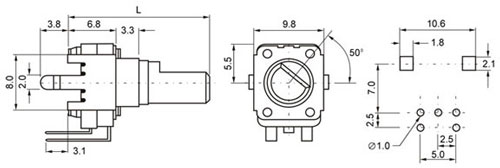

3RP/0902G

D1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

1 KOhm ~ 1 MOhm  +/- 20%

Total Rotational Angle

280 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

10 ~ 80 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

3 kgf/cm

Rated Power

0.03W

Push / Pull Strength

5 kgf/cm

Operating Voltage

50V AC max

Shaft Lever Wobble

0.8 x L/20mmp-p max

Slide Noise

100mV max

LIfe

10,000 cycles

Insulation Resistance

100MOhm min @250V DC

Withstand Voltage

250V AC for 1 minute

Gang Error

3dB max

Type Of Shaft

CODE

A

B

C

D

G

DIM “L”

15.0

20.0

25.0

30.0

12.0

DIM “F”

6.0

7.0

12.0

12.0

2.7

CODE

H

I

J

DIM “L”

9.5

15.0

20.0

DIM “T”

-

6.0

7.0

CODE

Q

R

S

T

U

DIM “L”

15.0

20.0

25.0

30.0

35.0

DIM “K”

6.0

7.0

7.0

7.0

7.0
