9mm Pot w/Switch 1

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Bushing code

Switch

Shaft code

Style

Taper

Value in Ohms

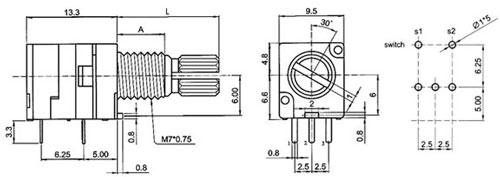

3RP/091

S

A1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

10 KOhm ~ 500 kOhm +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

A, B, C

Rotational Torque

10 ~ 200 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

outer shaft = 4 kgf/cm
inner shaft = 3 kgf/cm

Rated Power

taper A, C = 0.025W
taper B = 0.05W

Push / Pull Strength

4 kgf/cm / 3 kgf/cm

Operating Voltage

taper A, C = 25V AC max
taper B = 50V AC max

LIfe

10,000 cycles

Slide Noise

100mV max

Insulation Resistance

100MOhm min @250V DC

Gang Error

3dB max

Bushing code

CODE

5

7

0

DIM “A”

5.0

7.0

10.0

Type of Shaft

5mm bushing

CODE

1

2

3

4

DIM “L”

12.0

15.0

20.0

25.0

DIM “T”

3.5

7.5

12.0

12.0

DIM “M”

0.5

1.0

2.0

2.0

7mm bushing

CODE

1

2

3

4

DIM “L”

12.0

15.0

20.0

25.0

DIM “T”

3.5

7.5

12.0

12.0

DIM “M”

0.5

1.0

2.0

2.0

10mm bushing

CODE

2

3

4

DIM “L”

15.0

20.0

25.0

DIM “T”

3.5

6.5

12.0

DIM “M”

0.5

2.0

2.0

5mm bushing

CODE

A

B

C

V

DIM “L”

15.0

20.0

25.0

12.0

DIM “F”

7.0

12.0

12.0

5.3

7mm bushing

CODE

A

B

C

DIM “L”

15.0

20.0

25.0

DIM “F”

7.0

12.0

12.0

10mm bushing

CODE

A

B

C

DIM “L”

15.0

20.0

25.0

DIM “F”

3.5

12.0

12.0

5mm bushing

CODE

Q

R

S

DIM “L”

15.0

20.0

25.0

7mm bushing

CODE

Q

R

S

DIM “L”

15.0

20.0

25.0

10mm bushing

CODE

Q

R

S

DIM “L”

15.0

20.0

25.0
