Slide Potentiometer 1 with LED

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Lever

Terminal

Taper

Value in Ohms

3SP/C20L G

A1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

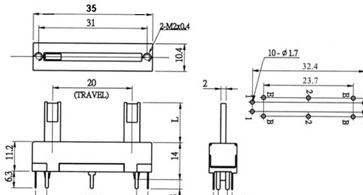

Mechanical Characteristics

Resistance Values

5 KOhm ~ 500 KOhm  +/- 20%

Stop Strength

2.5 kgf

Resistance Taper

A, B, C, D, K, W

Push / Pull Strength

5 kgf

Residual Resistance

0.01% of total resistance max

Lever Deviation

0.5 max (one side)

Rated Power

0.1W max

Life

10,000 cycles

Operating Voltage

200V AC max

LED Color

CODE

COLOR

R

RED

G

GREEN

Y

YELLOW

Type Of Lever

CODE

1

2

DIM “H”

15.0

20.0

CODE

3

4

DIM “H”

15.0

20.0
