Molded Trimming Pot 25

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Taper

Resistance value

3RP/M329H

B

Specify (100 Ohm ~ 1MOhm)

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

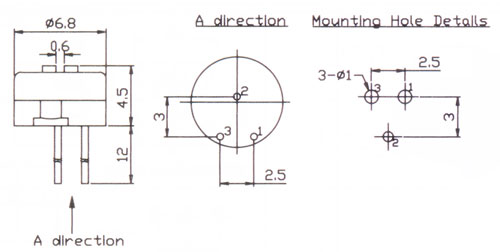

Mechanical Characteristics

Resistance Values

100 Ohm ~ 1 MOhm +/-10%

Torque

5.0 oz/in max

Resistance Taper

B (linear)

Stop Strength

5.0 oz/in max

Power Rating

0.5W @85°C, 0W @150°C

Wiper Positioning

50% nom.

Absolute Minimum Resistance

2 Ohm max

Vibration

30G

Contact Resistance Variation

3 Ohm max

Shock

100G

Voltage Adjustability

+/- 0.05%

Temperature

-55°C to + 150°C

Resistance Adjustability

+/- 0.15%

Rotational Life

200 cycles

Resolution

Infinitive





Insulation Resistance

1000M Ohm min @500V DC





Adjustment Angle

240° nom.





Dielectric Strength

600V AC @sea level
