Thin Slide Pot 6


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

3SP/T


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

500 Ohm ~ 2MOhm +/- 20%

Operating Force

10 ~ 100 gf

Resistance Taper

A, B, C, D, W

Stop Strength

3 kgf

Residual Resistance

10 Ohm

Push / Pull Strength

3 kgf

Rated Power

0.2W max

Lever Wobble

1.6 mm max

Operating Voltage

200V AC max

Life

10,000 cycles

Insulation Resistance

10MOhm min @250V DC

Withstanding Voltage

250V AC for 1 minute

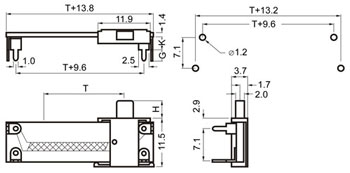

Type Of Lever

CODE

1

DIM “H”

4.0

CODE

2

3

DIM “H”

9.5

7.0

DIM “F”

5.0

0

CODE

4

DIM “H”

6.0

Terminal option
CODE	1	2	3
DIM “K”	2.5	2.2	4.6
DIM “G”	2.5	3.0	3.0
