12.5mm Slide Pot 6


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

3SP/S6020N


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

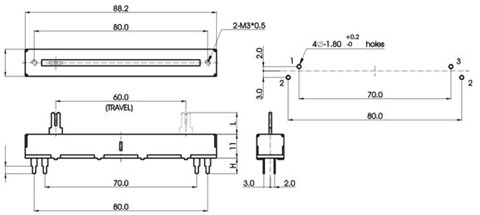

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 1MOhm +/- 20%

Operating Force

20 ~ 200 gf

Resistance Taper

A, B, C, D, K, W

Stop Strength

5 kgf

Residual Resistance

50 Ohm max

Push / Pull Strength

3 kgf

Rated Power

0.25W max

Lever Deviation

0.5 max (one side)

Operating Voltage

500V AC max

Life

15,000 cycles

Insulation Resistance

100MOhm min @250V DC

Gang Error

3 dB max

Type Of Lever

CODE

1

3

4

DIM “L”

10.0

15.0

20.0

DIM “F”

7.0

10.0

10.0

DIM “M”

6.0

7.0

7.0

CODE

F

A

B

C

D

E

DIM “L”

8.5

10.0

15.0

20.0

25.0

27.0

DIM “F”

5.0

5.0

10.0

10.0

10.0

10.0

CODE

H

I

DIM “L”

8.5

10.0

DIM “F”

7.0

10.0

DIM “W”

4.0

5.0

CODE

L

M

DIM “L”

15.0

20.0

CODE

P

Q

R

J

S

DIM “L”

7.0

8.0

10.0

15.0

25.0

CODE

T

U

DIM “L”

16.0

20.0

DIM “M”

11.0

12.0

DIM “F”

11.0

10.0

CODE

W

X

Y

Z

DIM “L”

10.0

15.0

20.0

25.0

DIM “F”

5.0

10.0

10.0

10.0

CODE

8

DIM “L”

10.0

Type Of Terminal

CODE

A1

A2

DIM “H”

7.0

8.5

CODE

B1

DIM “H”

7.0
