12mm Pot 1


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Part Number

3RP/1201N


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 500 KOhm +/- 20%

Total Rotational Angle

300 deg +/- 10 deg

Resistance Taper

A, C

Rotational Torque

31 ~ 204 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

5 kgf/cm

Rated Power

0.08W

Push / Pull Strength

7 kgf/cm

Operating Voltage

100V AC, 10V DC max

Click Position

Center

Insulation Resistance

100MOhm min @500V DC

Click Torque

51 ~ 204 gf/cm

LIfe

10,000 cycles

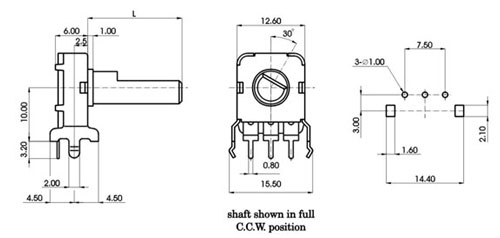

Type Of Shaft

CODE

F

A

G

E

B

C

D

Y

LENGTH

7.5

12.5

12.5

15.5

17.5

22.5

27.5

13.5

DIM “F”

5.0

7.0

8.0

12.0

12.0

12.0

12.0

12.0

CODE

0

1

2

3

4

5

6

LENGTH

7.5

10.5

12.5

17.5

22.5

27.5

32.5

DIM “T”

5.0

7.0

7.0

12.0

12.0

12.0

12.0

CODE

P

Q

R

S

T

U

LENGTH

7.5

12.5

17.5

22.5

27.5

32.5

DIM “T”

5.0

7.0

7.0

12.0

12.0

12.0
