16mm Pot 1


	Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

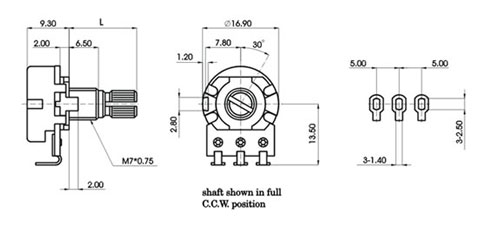

Part Number

3RP/1610N


	Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2 MOhm +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B, C, D

Rotational Torque

20 ~ 200 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

7 kgf/cm

Rated Power

taper A, C, D = 0.06W
taper B = 0.125W

Push / Pull Strength

7 kgf/cm

Operating Voltage

taper A, C, D = 150V
taper B = 200V

Click Position

Center, 11, 21, 31, 41

Insulation Resistance

100MOhm min @500V DC

LIfe

15,000 cycles

Gang Error

3dB max

Type Of Shaft

CODE

0

1

2

7

8

3

4

5

LENGTH

10.0

12.0

15.0

17.0

18.0

20.0

25.0

30.0

DIM “T”

2.3

3.5

6.0

7.0

8.0

9.9

12.1

12.0

DIM “M”

0.3

0.5

1.0

1.5

1.5

1.5

2.0

2.0

CODE

P

Q

R

S

T

U

LENGTH

10.0

15.0

20.0

25.0

30.0

40.0

CODE

A

B

C

D

G

LENGTH

15.0

20.0

25.0

30.0

12.0

DIM “F”

7.0

12.0

12.0

12.0

4.0

Clicks
CODE	C	4	6	7	9
CLICKS	Centerr	11	21	31	41
