16mm Rotary Potentiometer 34

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Other Catalogs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Shaft code

Style

Taper

Value in Ohms

3RP/1613N

D1

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Circuit

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 KOhm ~ 2 MOhm  +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

A, B, C

Rotational Torque

20 ~ 150 gf/cm

Residual Resistance

0.1% max of total resistance

Rotational Stop Strength

6 kgf/cm

Rated Power

taper A, C = 0.05W
taper B = 0.1W

Push / Pull Strength

5 kgf/cm

Operating Voltage

taper A, C = 50V
taper B = 100V

LIfe

15,000 cycles

Insulation Resistance

100MOhm min @500V DC

Withstanding Voltage

250V DC for 1 minute

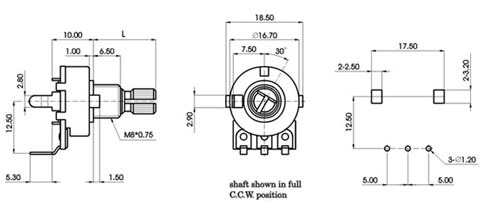

Type Of Shaft

CODE

2

3

4

DIM “L”

15.0

20.0

25.0

DIM “T”

6.0

10.0

12.0

DIM “M”

1.5

2.0

4.0
