22mm Wire Wound Potentiometer 2

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Bushing/Shaft combination

Style

Value in Ohms

3RP/W22B

1R

B

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

500 Ohm ~ 100 kOhm +/- 10%

Total Rotational Angle

360 deg +/- 10 deg

Resistance Taper

B (linear)

Starting Torque

36 m/m max

Rated Power

2W @160V AC

Stop Strength

300 m/m min

Withstand Voltage

500V AC for 1 minute

LIfe

10,000 cycles min

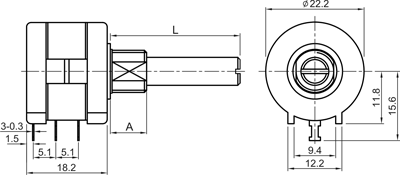

Bushing / Shaft Combination

CODE

1R

DIM “L”

21.0

DIM “A”

8.0

Bushing thread

3/8”-32 NEF

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.
