50mm Wire Wound Potentiometer 1

Alpha Products Inc - 351 Irving Drive, Oxnard, CA 93030, USA - Tel: 805-981-8666 - Fax: 805-988-6555 - Contact Us

Corporate Website

Send Your Specs

Contact Us

Std. Tapers

Request for Quote

Part Number

Model number

Bushing/Shaft combination

Style

Value in Ohms

3RP/W50A

B

Select Part Numbers from the table then click on the “Request a Quote” Button to send your requirements for Price and Delivery. If you need custom product please use the “Send your Specs” Button

Electrical Characterisics

Mechanical Characteristics

Resistance Values

5 Ohm ~ 50 Ohm +/- 20%

Total Rotational Angle

300 deg +/- 5 deg

Resistance Taper

B (linear)

Rotational Torque

50 ~ 300 gf/cm

Rated Power

30W DC

Antirotation Strength

1 kgf

Insulation Resistance

100MOhm min @500V DC

LIfe

15,000 cycles min

Withstand Voltage

500V AC for 1 minute

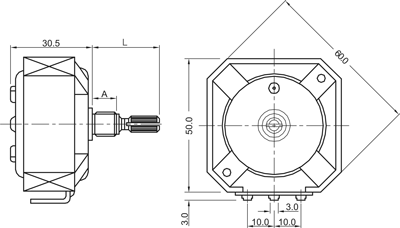

Bushing / Shaft Combination

CODE

1K

2K

3K

4K

5K

6K

DIM “L”

16.0

20.0

30.0

16.0

20.0

30.0

DIM “A”

10.0

20.0

# OF TEETH

18

Bushing thread

M9 x 0.75

Disclaimer: Alpha Products, Inc. makes no warranties, expressed or implied, including warranties of merchant ability or fitness /suitability for a particular purpose or application. Under no circumstances shall Alpha Products, Inc. be liable for incidental, consequential, or other damages from alleged negligence, breach of warranty, strict liability, tort, contract, or any other theory, arising out of the use, non use, or handling of these products.
Alpha Products Inc. reserves the right to discontinue, modify, amend and / or change any product, specification or service at any time without any obligation of providing any notice.
